Natural Gas Generator
Igamogen natural gas generators offer a cleaner, cost-effective, and environmentally responsible alternative to diesel. Fueled by CNG, LNG, or pipeline natural gas, these units provide stable, continuous, or prime power with significantly reduced emissions and operating costs.
Available in a wide range of power outputs, our units are engineered to meet both prime and standby power requirements with ease.
Explore our wide range of Natural Gas Generator Sets:

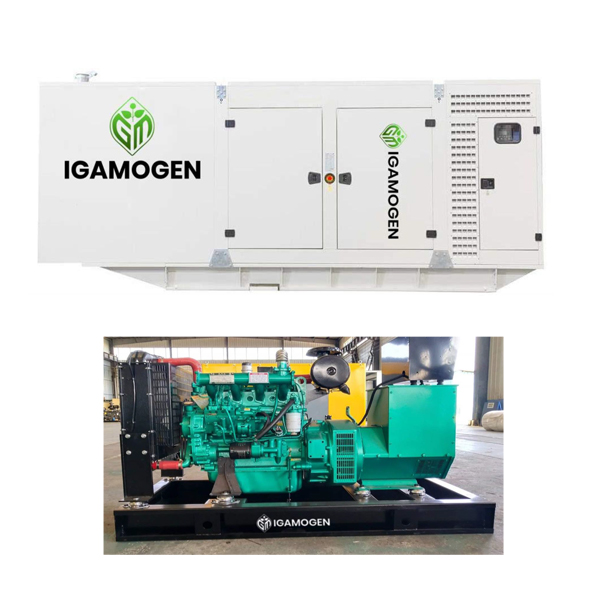

| Parameter | Specification |
|---|---|

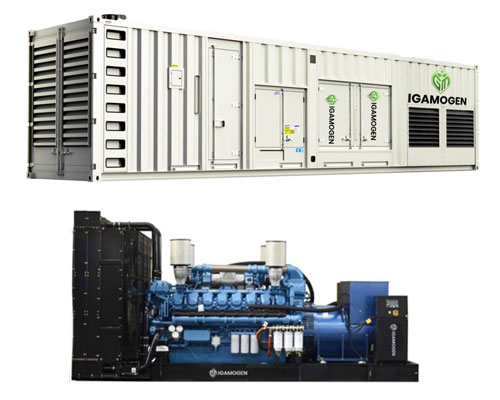

| Model | IGM16VCG-2000N5LC |
| Rated Power (kW) | 2000 |
| Apparent Power (kVA) | 2500 |
| Genset Prime Rating | 2500 kVA |
| Duty | Prime |
| Power Rating @ 100% kWe | 2000 kW |
| No. of Phases | 3 Phase |
| Output Voltage (V) | 400 V / 10500 V |
| Frequency & Speed | 50 Hz / 1500 RPM |
| Power Factor (lagging) | 0.8 |
| Rated Current (A) | 3608 A / 137.4 A |
| Electrical Efficiency | 0.42 |
| Thermal Efficiency | 0.43 |
| Total CHP Efficiency | 0.85 |
| Governing Class | G2 or G3 (ISO 8528 Standard) |
| Genset Physical Dimensions | |
| Genset Dimensions (mm) | 8834 x 2055 x 2890 |
| Genset Weight (Kg) | 25500 |
| Fuel Consumption | |
| Load | Fuel Consumption (kg/hr) |
| @ 75% Load | 400–420 kg/hr |
| @ 100% Load | 530–560 kg/hr |
| Oil & Coolant Capacity | |
| Oil Capacity (L) | 350–400 L |
| Coolant Capacity (L) | 450–500 L |
| Parameter | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Model | IGM16VCG-2000N5LC |
| Rated Engine Power (kW) | 2100–2200 |
| No. of Cylinders | 20 |
| Cylinder Arrangement | V-type |
| Stroke | 4-Stroke |
| Class of Insulation | Class H |
| Bore x Stroke (mm) | 170 x 195 mm |
| Displacement (Litres) | 90–110 L |
| Cooling System | Closed-loop water cooling / Radiator-based |
| Parameter | Specification |
|---|---|

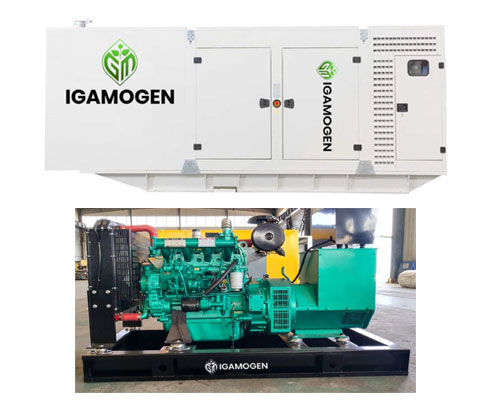

| Model | IGM16VCG-1500N5LC |
| Rated Power (kW) | 1100 |
| Apparent Power (kVA) | 1375 |
| Genset Prime Rating (kVA) | 1375 |
| Duty | Prime |
| Power Rating @ 100% kWe | 1100 kW |
| Output Voltage | 400 V / 10500 V |
| Frequency | 50 Hz |
| Speed | 1000 RPM |
| No. of Phases | 3 Phase |
| Power Factor (Lagging) | 0.8 |
| Rated Current (A) | 1987 A / 75.7 A |
| Electrical Efficiency | 0.4 |
| Thermal Efficiency | 0.42 |
| Total Efficiency | 0.82 |
| Governing Class | G2 / G3 (ISO 8528 compliant) |
| Genset Dimensions & Weight | |
| Parameter | Specification |
| Dimensions (L x W x H) mm | 7138 x 2088 x 2790 |
| Approximate Weight (Kg) | 22700 |
| Fuel Consumption | |
| Load | Fuel Consumption (kg/hr) |
| @ 75% Load | 220–240 kg/hr |
| @ 100% Load | 290–310 kg/hr |
| Oil & Coolant Capacities | |
| Oil Capacity (L) | 200–250 Litres |
| Coolant Capacity (L) | 300–350 Litres |
| Parameter | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Model | IGM16VCG-1500N5LC |
| Rated Engine Power (kW) | 1150–1200 |
| No. of Cylinders | 20 |
| Cylinder Arrangement | V-type |
| Stroke | 4-Stroke |
| Bore x Stroke (mm) | 170 mm x 195 mm |
| Displacement (Ltr) | 80–90 Litres |
| Cooling System | Water-cooled (Radiator / HEX) |
| Class of Insulation | Class H |
| Parameter | Specification |
|---|---|
| Model | IGM16VTDG-1100N5LC |
| Rated Power (kW) | 1100 |
| Apparent Power (kVA) | 1375 |
| Duty | Prime |
| Power Rating @ 100% kWe | 1100 kW |
| Output Voltage | 400 V / 10500 V |
| Frequency | 50 Hz |
| Speed | 1500 RPM |
| No. of Phases | 3 Phase |
| Power Factor (Lagging) | 0.8 |
| Rated Current (A) | 1987 A |
| Electrical Efficiency | 0.4 |
| Thermal Efficiency | 0.42 |
| Total Efficiency | 0.82 |
| Governing Class | G2 or G3 (ISO 8528 compliant) |
| Engine Type | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Model | IGM16VTDG-1100N5LC |
| Rated Engine Power (kW) | 1150–1200 kW |
| No. of Cylinders | 16 |
| Cylinder Arrangement | V-type |
| Engine Stroke | 4-Stroke |
| Bore x Stroke (mm) | 150 mm x 180 mm |
| Displacement | 50–55 Litres |
| Cooling System | Water-cooled (Radiator/HEX) |
| Class of Insulation | Class H |

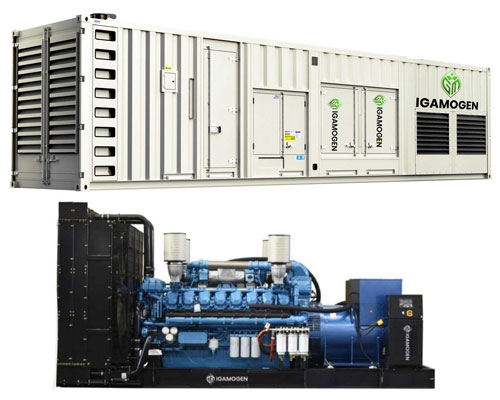

| Parameter | Specification |
|---|---|
| Model | IGM12VCG-1000N5HC |
| Rated Power Output (kW) | 1000 |
| Rated Power Output (kVA) | 1250 |
| Duty | Prime |
| Output Voltage | 400 V / 10,500 V |
| Frequency | 50 Hz |
| Speed | 1000 RPM |
| Phases | 3 Phase |
| Power Factor (lagging) | 0.8 |
| Current (A) | 1805 A / 69 A |
| Governing Class | G2 / G3 (ISO 8528) |
| Electrical Efficiency | 38–40% |
| Thermal Efficiency | 0.42 |
| Total Efficiency | 80–82% |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM12VCG-1000N5HC |
| Rated Power (KW) | 1050–1100 kW |
| No. of Cylinders | 16 |
| Cylinder Arrangement | V-Type |
| Stroke | 4-Stroke |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 150 x 180 mm |
| Displacement (Ltr) | 40–45 L |
| Cooling System | Water-Cooled (Radiator/HEX) |
| Oil Capacity (L) | 120–140 L |
| Coolant Capacity (L) | 150–180 L |
| Parameter | Specification |
|---|---|
| Genset Prime Rating (kVA) | 875 kVA |
| Duty | Prime |
| Power Rating @ 100% Load (kW) | 700 |
| Number of Phases | 3 Phase |
| Output Voltage | 400 V / 10500 V |
| Electrical Efficiency | 0.38 |
| Thermal Efficiency | 0.42 |
| Total Efficiency | 0.8 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 1265 A / 48 A |
| Frequency | 50 Hz |
| RPM | 1500 |
| Governing Class | G2 or G3 (as per ISO8528) |

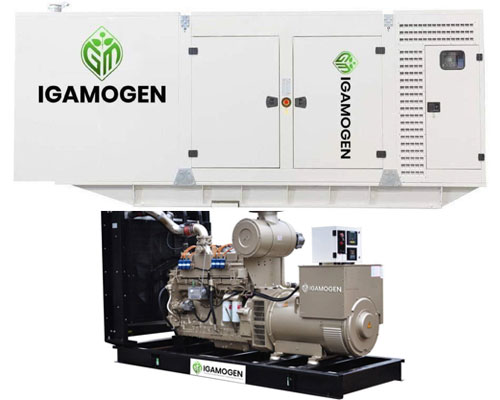

| Engine Type | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Engine Model | IGMl2VTDG-700N5LC |
| Rated Power (KW) | 750–800 KW |
| Number of Cylinders | 12 or 16 |
| Cylinder Arrangement | V-Type |
| Stroke | 4-Stroke |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 150 x 180 mm |
| Displacement (Ltr) | 30–40 L |
| Cooling System | Water-cooled |
| Oil Capacity (L) | 90–110 L |
| Coolant Capacity (L) | 100–150 L |
| Parameter | Specification |
|---|---|

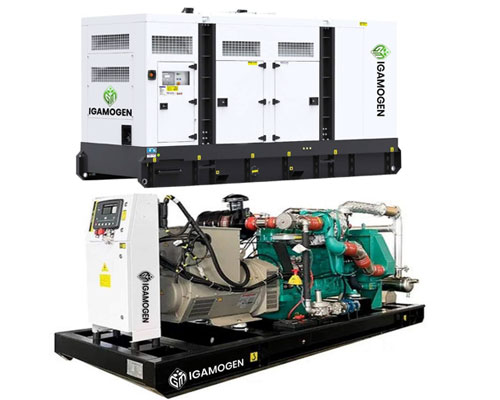

| Model | IGM6CG-600N5LC |
| Rated Electrical Power Output | 600 kW |
| Rated Apparent Power (kVA) | 750 Kva |
| Output Voltage | 400 V |
| Frequency | 50 Hz |
| Speed | 1500 RPM |
| No. of Phases | 3-Phase |
| Power Factor (Lagging) | 0.8 |
| Current Output (A) | 1083 A |
| Duty Rating | Prime |
| Power Rating @ 100% Load | 600 kWe |
| Governing Class | G2 (ISO 8528) |
| Engine Type | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Engine Model | IGM6CG-600N5LC |
| Engine Rated Power | 660–700 kW |
| No. of Cylinders | 12 |
| Cylinder Arrangement | V-Type |
| Stroke Type | 4-Stroke, Spark Ignition |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 135 × 165 mm |
| Displacement | 23–27 Liters |
| Cooling System | Water-Cooled |
| Parameter | Specification |
|---|---|

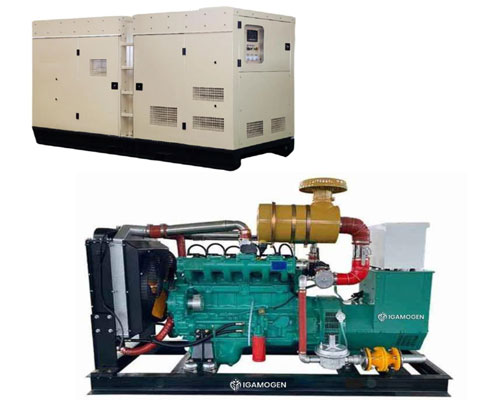

| Model | IGM6CG-500N5LC |
| Rated Electrical Power Output | 500 kW |
| Rated Apparent Power (kVA) | 625 kVA |
| Output Voltage | 400 V |
| Frequency | 50 Hz |
| Speed | 1500 RPM |
| No. of Phases | 3-Phase |
| Power Factor (Lagging) | 0.8 |
| Current Output (A) | 902 A |
| Duty Rating | Prime |
| Power Rating @ 100% Load | 500 kWe |
| Governing Class | G2 (ISO 8528) |
| Engine Type | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Engine Model | IGM6CG-500N5LC |
| Engine Rated Power | 550–575 kW |
| No. of Cylinders | 8 – 12 |
| Cylinder Arrangement | Inline / V-Type |
| Stroke Type | 4-Stroke, Spark Ignition |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 130 × 160 mm |
| Displacement | 18–22 Liters |
| Cooling System | Water-Cooled with Radiator |

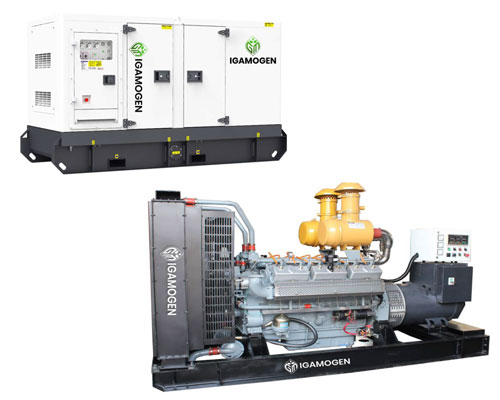

| Parameter | Specification |
|---|---|
| Model | IGM6KG-200N5LC |
| Rated Power (kW) | 200 kW |
| Rated Apparent Power (kVA) | 250 kVA |
| Output Voltage (V) | 400 V |
| Frequency (Hz) | 50 Hz |
| Speed (RPM) | 1500 RPM |
| Power Factor (lagging) | 0.8 |
| Duty Rating | Prime |
| Power Rating @ 100% kWe | 200 kW |
| Genset Prime Rating (kVA) | 250 kVA |
| No. of Phases | 3-Phase |
| Current (A) | 361 A |
| Frequency & RPM | 50 Hz @ 1500 RPM |
| Governing Class | G2 – ISO 8528 compliant |
| Engine Type | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Engine Model | IGM6KG-200N5LC |
| Rated Engine Power (kW) | 220–230 kW |
| No. of Cylinders | 6 – 8 |
| Cylinder Arrangement | Inline or V-Type |
| Stroke Type | 4-Stroke, Spark Ignition |
| Class of Insulation | H-Class |
| Bore × Stroke (mm) | 130 × 160 mm |
| Displacement | 11 – 14 Litres |
| Cooling System | Water-Cooled |

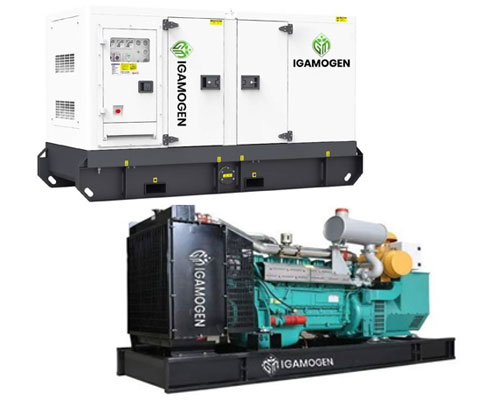

| Parameter | Specification |
|---|---|
| Model | IGM6MKG-150N5LC |
| Rated Power (kW) | 150 kW |
| Rated Apparent Power (kVA) | 187.5 kVA |
| Output Voltage (V) | 400 V |
| Frequency (Hz) | 50 Hz |
| Speed (RPM) | 1500 RPM |
| Power Factor (lagging) | 0.8 |
| Duty Rating | Prime |
| Power Rating @ 100% kWe | 150 kW |
| Genset Prime Rating (kVA) | 187.5 kVA |
| No. of Phases | 3-Phase |
| Current (A) | 271 A |
| Frequency & RPM | 50 Hz @ 1500 RPM |
| Governing Class | G2 – ISO 8528 compliant |
| Engine Type | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Engine Model | IGM6MKG-150N5LC |
| Rated Engine Power (kW) | 165–175 kW |
| No. of Cylinders | 6 – 8 |
| Cylinder Arrangement | Inline / V-type (depending on engine) |
| Stroke Type | 4-Stroke, Otto Cycle |
| Class of Insulation | H-Class |
| Bore × Stroke (mm) | 130 mm × 160 mm |
| Displacement | 9.0 – 10.5 L |
| Cooling System | Water-Cooled |

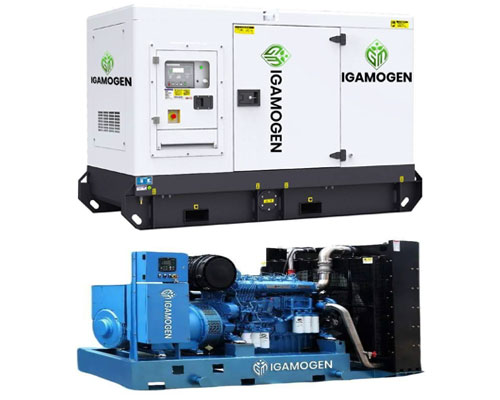

| Parameter | Specification |
|---|---|
| Model | IGM6GG-90N5LC |
| Rated Power (kW) | 90 kW |
| Rated Apparent Power (kVA) | 112.5 kVA |
| Output Voltage (V) | 400 V |
| Frequency (Hz) | 50 Hz |
| Speed (RPM) | 1500 RPM |
| Power Factor (lagging) | 0.8 |
| Duty Rating | Prime |
| Power Rating @ 100% kWe | 90 kW |
| Genset Prime Rating (kVA) | 112.5 kVA |
| No. of Phases | 3-Phase |
| Current (A) | 162 A |
| Frequency & RPM | 50 Hz @ 1500 RPM |
| Governing Class | G2 – ISO 8528 compliant |
| Engine Type | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Engine Model | IGM4GG-60N51C |
| Rated Engine Power (kW) | 65 – 70 kW |
| No. of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Stroke Type | 4-Stroke |
| Class of Insulation | H-Class |
| Bore × Stroke (mm) | 110 mm × 130 mm |
| Displacement | 6.5 – 7.0 L |
| Cooling System | Water-cooled with radiator |

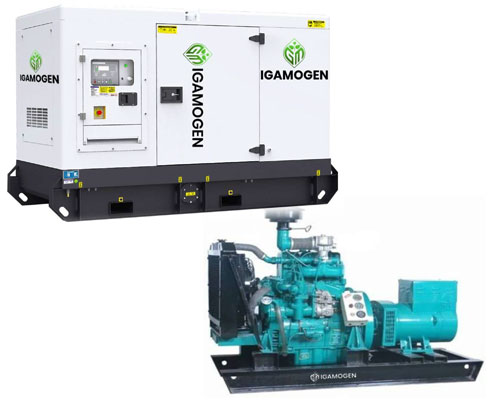

| Parameter | Specification |
|---|---|
| Model | IGM6GG-80N51C |
| Rated Power (kW) | 80 kW |
| Rated Apparent Power (kVA) | 100 kVA |
| Output Voltage (V) | 400 V |
| Frequency (Hz) | 50 Hz |
| Speed (RPM) | 1500 RPM |
| Power Factor (lagging) | 0.8 |
| Duty Rating | Prime |
| Power Rating @ 100% kWe | 80 kW |
| Genset Prime Rating (kVA) | 100 kVA |
| No. of Phases | 3-Phase |
| Current (A) | 144 A |
| Frequency & RPM | 50 Hz @ 1500 RPM |
| Governing Class | G2 (ISO 8528 Compliant ±1% Frequency Control) |
| Engine Type | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Engine Model | IGM6GG-80N51C |
| Rated Engine Power (kW) | 85–90 kW |
| No. of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Stroke Type | 4-Stroke |
| Class of Insulation | H-Class |
| Bore × Stroke (mm) | 105 mm × 125 mm |
| Displacement | 6.0 – 7.0 Litres |
| Cooling System | Water-cooled with radiator |

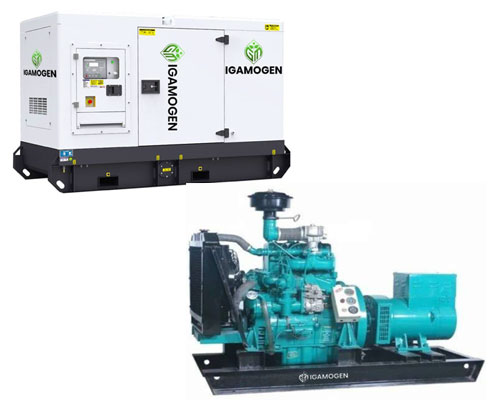

| Parameter | Specification |
|---|---|
| Model | IGM4GG-60N51C |
| Rated Power (kW) | 60 kW |
| Rated Apparent Power (kVA) | 75 Kva |
| Output Voltage (V) | 400 V |
| Frequency (Hz) | 50 Hz |
| Speed (RPM) | 1500 |
| Power Factor (lagging) | 0.8 |
| Duty Rating | Prime |
| Power Rating @ 100% kWe | 60 kW |
| Genset Prime Rating (kVA) | 75 kVA |
| No. of Phases | 3-Phase |
| Current (A) | 108 A |
| Frequency & RPM | 50 Hz @ 1500 RPM |
| Governing Class | G2 – ISO 8528 compliant |
| Engine Type | Specification |
|---|---|
| Engine Brand | IGAMOGEN |
| Engine Model | IGM4GG-60N51C |
| Rated Engine Power (kW) | 65 – 70 kW |
| No. of Cylinders | 4 |
| Cylinder Arrangement | In-line |
| Stroke Type | 4-Stroke |
| Class of Insulation | H-Class |
| Bore × Stroke (mm) | 105 mm × 125 mm |
| Displacement | 4.0 – 5.0 Litres |
| Cooling System | Water-cooled with radiator |
