Diesel Engine Generator
At Igamogen, our Diesel Generators are built for high performance, durability, and dependability. Designed to handle continuous and emergency power needs, our diesel generator sets offer unmatched fuel efficiency and rugged construction. Whether for hospitals, data centers, construction sites, or agricultural applications, our diesel gensets ensure uninterrupted operations, even in the harshest environments. Igamogen diesel generator sets deliver unmatched reliability and fuel efficiency for the most demanding applications. Available from 10 kVA to 3000 kVA in both open and sound-attenuated canopy designs, our diesel generators are built for prime, standby, and continuous operation.
Available in a wide range of power outputs, our units are engineered to meet both prime and standby power requirements with ease.
Explore our wide range of Diesel Engine Generator Sets:
| Parameter | Specification |
|---|---|

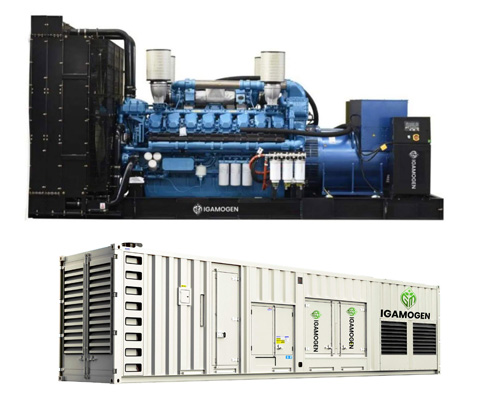

| Genset Prime Rating (kVA) * | 1250 |
| Power Rating @ 100% kWe (in KW) | 1000 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 35.7/35.7 |
| Total efficiency | 71.4 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 1804 |
| Frequency (Hz) & RPM | 50/1000 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 6179 X 2387 X 2637 |
| Genset Weight (Kg) Approx. | 18000 |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM12VWC1250KN |
| Rated power（KW） | 1120 |
| No. of Cylinder | 12 |
| Cylinder arrangement | V |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 200 X 210 |
| Displacement (Ltr) | 79.17L |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 100-150 |
| Fuel consumption @ 100% load (kg/hr)** | 180-200 |
| Oil capacity（L） | 340 |
| Coolant capacity(L) | 651 |
| Parameter | Specification |
|---|---|

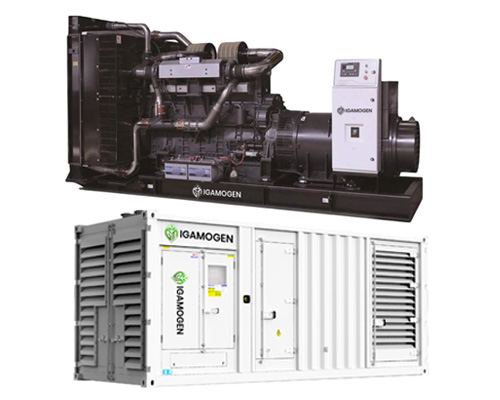

| Genset Prime Rating (kVA) * | 875 |
| Duty (Standby/ Prime) | Prime |
| Power Rating @ 100% kWe (in KW) | 800 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 33.4/53 |
| Total efficiency | 96.1 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 1260 |
| Frequency (Hz) & RPM | 50/1500 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 4180 X 1300 X 2000 |
| Genset Weight (Kg) Approx. | 7300 |
| Engine Specification | |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM12VWC875KN |
| Rated power（KW） | 60 |
| No. of Cylinder | 12 |
| Cylinder arrangement | V |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 150 X 185 |
| Displacement (Ltr) | 39.231 |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 140-145 |
| Fuel consumption @ 100% load (kg/hr)** | 185-195 |
| Oil capacity（L） | 80-100 |
| Coolant capacity(L) | 100-130 |
| Parameter | Specification |
|---|---|

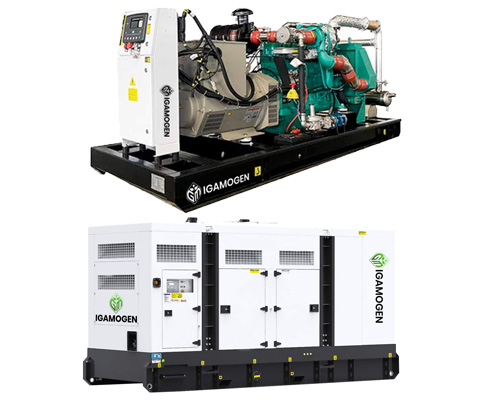

| Genset Prime Rating (kVA) * | 625 |
| Duty (Standby/ Prime) | Prime |
| Power Rating @ 100% kWe (in KW) | 500 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 35.5/54 |
| Total efficiency | 89.5 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 722 |
| Frequency (Hz) & RPM | 50/1500 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 4107 X 1633 X 2111 |
| Genset Weight (Kg) Approx. | 8890 |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM6LWC625KN |
| Rated power（KW） | 625 |
| No. of Cylinder | 6 |
| Cylinder arrangement | L |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 200 X 210 |
| Displacement (Ltr) | 39.58L |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 70-80 |
| Fuel consumption @ 100% load (kg/hr)** | 95-105 |
| Oil capacity（L） | 160 |
| Coolant capacity(L) | 90 |
| Parameter | Specification |
|---|---|

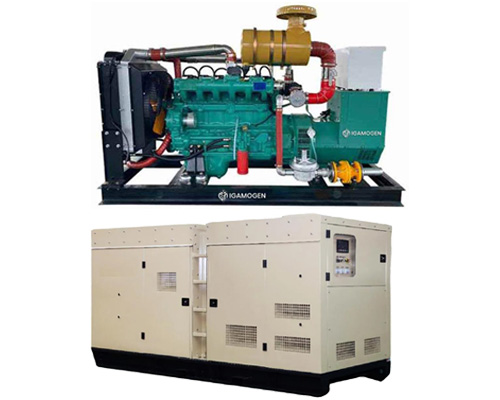

| Genset Prime Rating (kVA) * | 500 |
| Duty (Standby/ Prime) | Prime |
| Power Rating @ 100% kWe (in KW) | 440 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 40/55 |
| Total efficiency | 0.9 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 720 |
| Frequency (Hz) & RPM | 50/1800 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 3880 X 1300 X 2000 |
| Genset Weight (Kg) Approx. | 4300 |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM12VWC500KN |
| Rated power（KW） | 440 |
| No. of Cylinder | 12 |
| Cylinder arrangement | V |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 132 X 145 |
| Displacement (Ltr) | 23.811 L |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 78-85 |
| Fuel consumption @ 100% load (kg/hr)** | 105-115 |
| Oil capacity（L） | 80 |
| Coolant capacity(L) | 90 |
| Parameter | Specification |
|---|---|

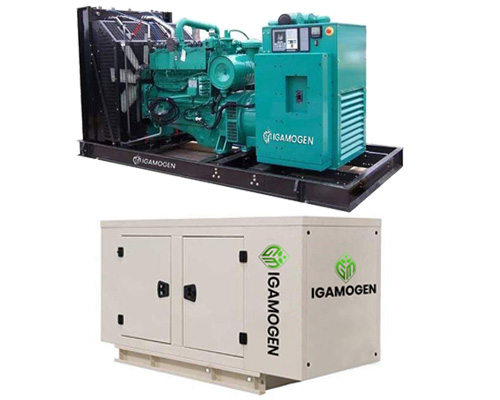

| Genset Prime Rating (kVA) * | 438 |
| Duty (Standby/ Prime) | Pime |
| Power Rating @ 100% kWe (in KW) | 350 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 34.9/53 |
| Total efficiency | 91.5 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 632 |
| Frequency (Hz) & RPM | 50/1500 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 3650 X 1250 X 2150 |
| Genset Weight (Kg) Approx. | 5500 |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM6LWC438KN |
| Rated power（KW） | 400 |
| No. of Cylinder | 6 |
| Cylinder arrangement | L |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 152 X 180 |
| Displacement (Ltr) | 19.6L |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 50-55 |
| Fuel consumption @ 100% load (kg/hr)** | 67-75 |
| Oil capacity（L） | 64 |
| Coolant capacity(L) | 47 |
| Parameter | Specification |
|---|---|
| Genset Prime Rating (kVA) * | 313 |
| Duty (Standby/ Prime) | Prime |
| Power Rating @ 100% kWe (in KW) | 250 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 34.9/53 |
| Total efficiency | 87.9 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 452 |
| Frequency (Hz) & RPM | 50/1500 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 3270 X 1270 X 1760 |
| Genset Weight (Kg) Approx. | 3800 |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM6LWC313KN |
| Rated power（KW） | 300 |
| No. of Cylinder | 6 |
| Cylinder arrangement | L |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 145 X 165 |
| Displacement (Ltr) | 16.35L |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 35-40 |
| Fuel consumption @ 100% load (kg/hr)** | 45-55 |
| Oil capacity（L） | 55 |
| Coolant capacity(L) | 45 |
| Parameter | Specification |
|---|---|

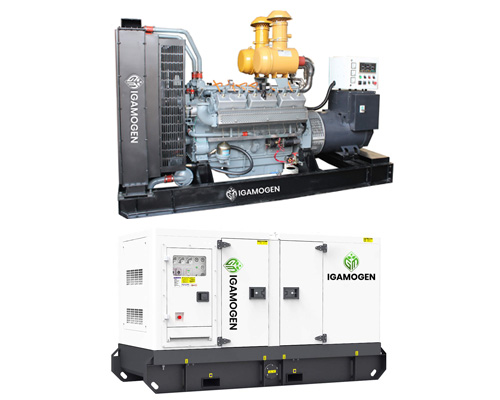

| Genset Prime Rating (kVA) * | 225 |
| Duty (Standby/ Prime) | Prime |
| Power Rating @ 100% kWe (in KW) | 180 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 37.3/52 |
| Total efficiency | 89.3 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 260 |
| Frequency (Hz) & RPM | 50/1500 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 2900 X 1030 X 1780 |
| Genset Weight (Kg) Approx. | 2500 |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM6LWC225KN |
| Rated power（KW） | 210 |
| No. of Cylinder | 6 |
| Cylinder arrangement | L |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 123 X 145 |
| Displacement (Ltr) | 10.34L |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 25-30 |
| Fuel consumption @ 100% load (kg/hr)** | 35-40 |
| Oil capacity（L） | 34 |
| Coolant capacity(L) | 22 |
| Parameter | Specification |
|---|---|
| Genset Prime Rating (kVA) * | 125 |
| Duty (Standby/ Prime) | Prime |
| Power Rating @ 100% kWe (in KW) | 100 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 32.4/53 |
| Total efficiency | 85.4 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 180 |
| Frequency (Hz) & RPM | 50/1500 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 2400 X 980 X 1450 |
| Genset Weight (Kg) Approx. | 1200 |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM6LWC125KN |
| Rated power（KW） | 120 |
| No. of Cylinder | 6 |
| Cylinder arrangement | L |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 112 X 132 |
| Displacement (Ltr) | 7.8L |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 14-16 |
| Fuel consumption @ 100% load (kg/hr)** | 19-22 |
| Oil capacity（L） | 22 |
| Coolant capacity(L) | 17 |
| Parameter | Specification |
|---|---|

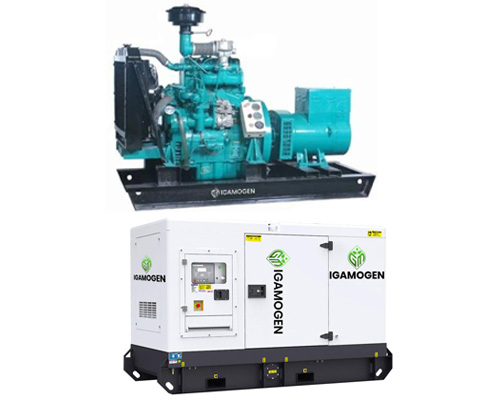

| Genset Prime Rating (kVA) * | 62.5 |
| Duty (Standby/ Prime) | Prime |
| Power Rating @ 100% kWe (in KW) | 50 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 33.4/53 |
| Total efficiency | 86.4 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 90 |
| Frequency (Hz) & RPM | 50/1500 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 1900 X 720 X 930 |
| Genset Weight (Kg) Approx. | 1000 |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM4LWC62KN |
| Rated power（KW） | 60 |
| No. of Cylinder | 4 |
| Cylinder arrangement | L |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 108 X 115 |
| Displacement (Ltr) | 4.21L |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 07-08 |
| Fuel consumption @ 100% load (kg/hr)** | 11-13 |
| Oil capacity（L） | 13 |
| Coolant capacity(L) | 10 |
| Parameter | Specification |
|---|---|

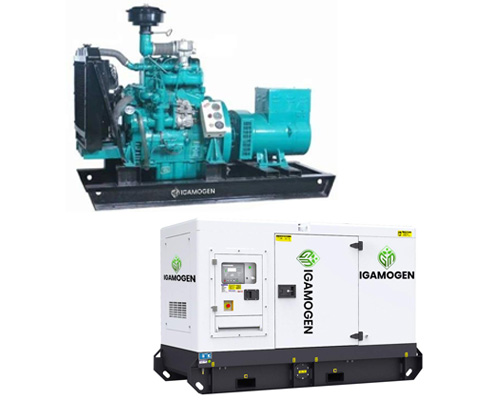

| Genset Prime Rating (kVA) * | 25 |
| Duty (Standby/ Prime) | Prime |
| Power Rating @ 100% kWe (in KW) | 20 |
| No. of Phases | 3 Ph |
| Output Voltage (V) | 400 |
| Electrical efficiency/Thermal efficiency | 30/50 |
| Total efficiency | 84.9 |
| Power Factor (lagging) | 0.8 |
| Current (A) | 36 |
| Frequency (Hz) & RPM | 50/1500 |
| Governing Class | G2 |
| Genset dimensions (L x W x H) in mm | 1400 X 600 X 1200 |
| Genset Weight (Kg) Approx. | 460 |
| Engine Type | Specification |
|---|---|
| Brand | IGAMOGEN |
| Model | IGM4LWC25KN |
| Rated power（KW） | 25 |
| No. of Cylinder | 4 |
| Cylinder arrangement | L |
| Stroke | Four strokes |
| Class of Insulation | H-Class |
| Bore x Stroke (mm) | 90 X 100 |
| Displacement (Ltr) | 2.545 L |
| Cooling System | Water-cooling |
| Fuel consumption @ 75% load (kg/hr) ** | 04-05 |
| Fuel consumption @ 100% load (kg/hr)** | 05-06 |
| Oil capacity（L） | 5 |
| Coolant capacity(L) | 10 |
